【图表组件】雷达图

Maz马

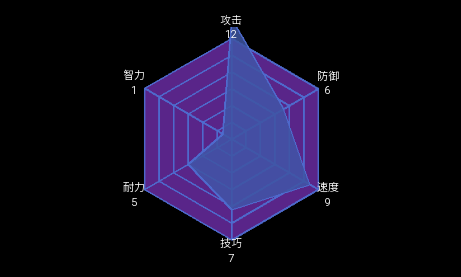

预览


登录/注册后可看大图

图表组件
    雷达图
    折线图

B站魔理沙大佬已经出过视频讲过思路了
不过她似乎并没有给出源码，然后论坛也没有看到过，所以我发一下
可能细节和魔理沙佬的不太一样，但思路应该都一样

[RenPy] 纯文本查看 复制代码

init python:
    import math
    class RadarChart(renpy.Displayable):
        def __init__(self,values,max_value=10,size=None,points=None,levels=None,colors=None,**kwargs):
            super(RadarChart, self).__init__(**kwargs)
            self.texts = list(values.keys())
            self.nums = list(values.values())
            self.max_value = max_value
            self.size = size or 400
            self.points = points or len(self.texts)
            self.levels = levels or 1
            self.colors = colors or ["#a646ffd0", "#6085ffd0", "#ffffff"]

            self.text_size = self.size*0.05

        def render(self,width,height,st,at):
            render = renpy.Render(self.size,self.size)
            canvas = render.canvas()

            center = (self.size // 2, self.size // 2)
            # 绘制背景，动态计算顶点位置 (N边形)
            radius = self.size // 2 - 20
            points = []
            for i in range(self.points):
                angle = 2 * math.pi * i / self.points - math.pi / 2 # 保持顶部为起点
                x = center[0] + radius * math.cos(angle)
                y = center[1] + radius * math.sin(angle)
                points.append((x, y))
            canvas.polygon(self.colors[0],points)

            # 轴
            for point in points:
                canvas.line(self.colors[1],center,point,width=2)
            # 绘制蜘蛛网格
            for n in range(1, self.levels + 1):
                scale = n / self.levels # 缩放比例
                grid_points = []
                for i in range(self.points):
                    angle = 2 * math.pi * i / self.points - math.pi / 2
                    x = center[0] + (radius * scale) * math.cos(angle)
                    y = center[1] + (radius * scale) * math.sin(angle)
                    grid_points.append((x, y))
                canvas.polygon(self.colors[1],grid_points,width=2)

            # 绘制数据区域
            data_points = []
            for i, value in enumerate(self.nums):
                scaled_radius = radius * (value / self.max_value)
                angle = 2 * math.pi * i /len(self.nums) - math.pi / 2
                x = center[0] + scaled_radius * math.cos(angle)
                y = center[1] + scaled_radius * math.sin(angle)
                data_points.append((x, y))
            canvas.polygon(self.colors[1],data_points)
            # 描边
            canvas.polygon(self.colors[1],data_points,width=2)

            # 顶点上垂直排列的文本组
            group_radius = radius + self.text_size
            for i, (label, value) in enumerate(zip(self.texts, self.nums)):
                angle = 2 * math.pi * i / len(self.texts) - math.pi / 2
                x = center[0] + group_radius * math.cos(angle)
                y = center[1] + group_radius * math.sin(angle)

                # 预计算文本尺寸
                label_text = Text(label, color=self.colors[2], size=self.text_size,align=(0.5,0.5))
                value_text = Text(str(value), color=self.colors[2], size=self.text_size,align=(0.5,0.5))
                label_width, label_height = label_text.size()
                value_width, value_height = value_text.size()

                # 确定VBox总尺寸
                group_width = max(label_width, value_width)
                group_height = label_height + value_height

                # 创建固定尺寸的VBox
                text_group = VBox(label_text,value_text,xysize=(group_width, group_height),align=(0.5,0.5))

                # 渲染
                render.blit(renpy.render(text_group, width, height, st, at),(x - group_width/2, y - group_height/2))

            return render

# 示例数据，只有points和values是必要入参，其他的有默认
image radarchart = RadarChart(
    values={"攻击": 12,"防御": 6, "速度": 9,"技巧": 7,"耐力": 5,"智力": 1},  # 数值字典，以正N边形顺时针排列，如果数值的数量不对应
    max_value=10,                                                          # 图表最大数值，如果提供的数值超过最大数值，会出现有意思的错位效果
    size=400,                                                              # 整个图表的尺寸
    points=5,                                                              # 正N边形
    levels=6,                                                              # 雷达图中的蛛网纹路层级，是美化用的，这里是6层蛛网纹路
    colors=["#a646ffd0", "#6085ffd0", "#ffffff"])                    # 颜色列表，背景色，纹路色，文字色

label test:
    show radarchart:
        align(0.5,0.5)
